Product Description

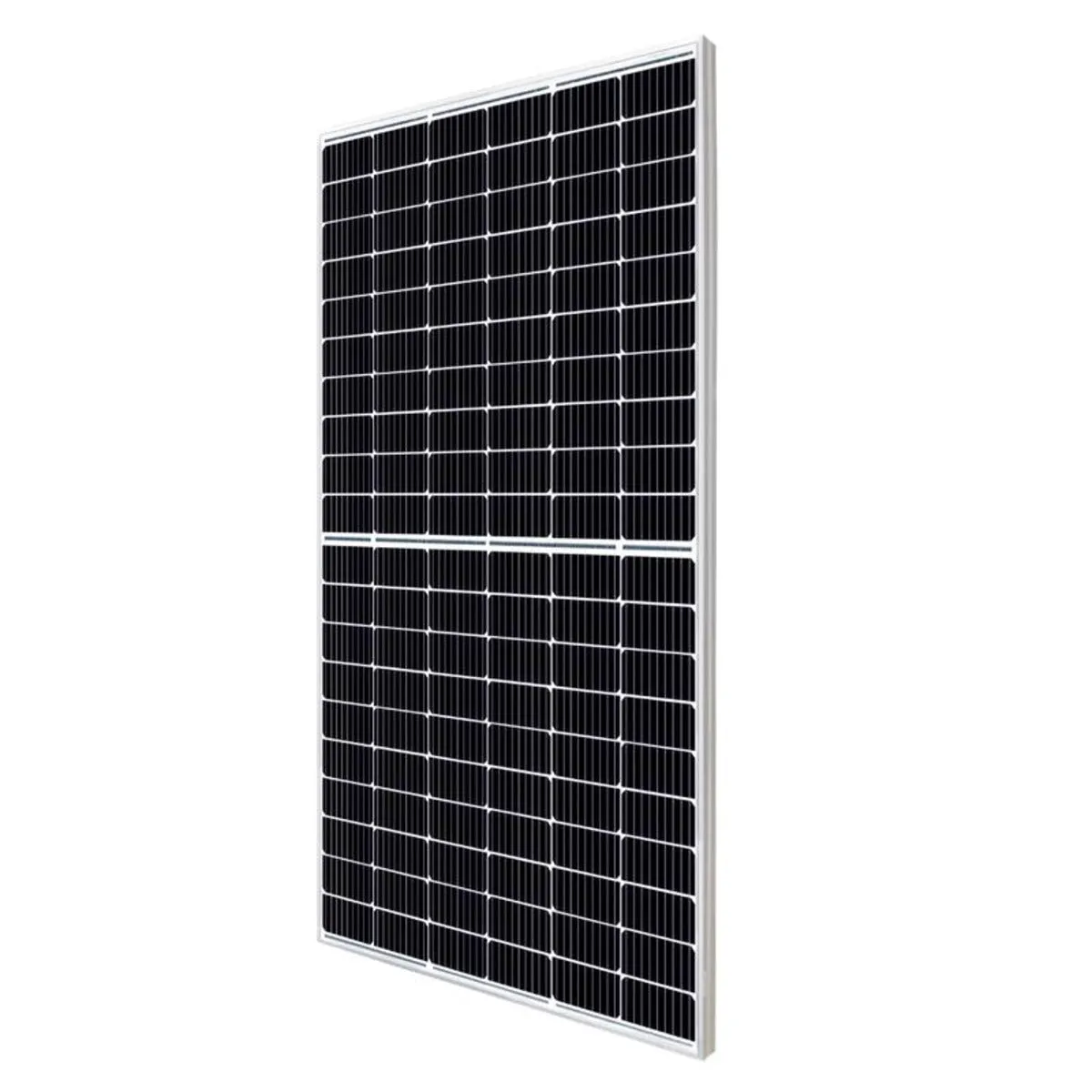

The Canadian Solar 605W Super High Power Mono PERC HiKU7 with EVO2 module has an impressive 605W rating with 21.4% efficiency and comes equipped with Staubli MC4-EVO2 Connectors.

More Power

• Module power up to 605 W Module efficiency up to 21.4 %
• Up to 3.5 % lower LCOE Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Better shading tolerance

More reliable

• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*

Features

• Module efficiency up to 21.4 %.
• Up to 3.5 % lower LCOE, Up to 5.7 % lower system cost.
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation.
• Compatible with mainstream trackers, cost effective product for utility power plant.
• Better shading tolerance
• Minimizes micro-crack impacts.
• Heavy snow load up to 5400Pa and increased wind load up to 2400Pa.
• 12 year product warranty on materials and workmanship
• 25 years linear power performance warranty

 Certifications

• ISO 9001 : 2015 / Quality management system
• ISO 14001 : 2015 / Standards for environmental management system
• ISO 45001 : 2018 / International standards for occupational health & safety

Product Certifications

 IEC 61215 / IEC 61730 / CE / INMETRO / MCS / UKCA UL 61730 / IEC 61701 / IEC 62716 / IEC 63126 Level1 / IEC 60068-2-68 UNI 9177 Reaction to Fire: Class 1 / Take-e-way

Specifications

• Weight: 31 kg
• Rated Power: 605 W
• MCS Reference: BABT8767-56-605W
• Length: 2,172 mm
• Width: 1,303 mm
• Depth:35 mm
• VMPP: 35.1 V
• IMPP: 17.25 A
• Isc:18.52 A
• Voc: 41.5 V
• Temp. Coefficient (Mpp): -0.34 %
• Clamp position on panel: Long and short side
• Connector Type: EVO2
• Efficiency: 21.4 %
• Pallet Size: Oversized

Electrical Data at STC

• CS6R: 605 MS
• Nominal Max. Power (Pmax): 605 W
• Opt. Operating Voltage (Vmp): 35.1 V
• Opt. Operating Current (Imp): 17.25 A
• Open Circuit Voltage (Voc): 41.5 V
• Short Circuit Current (Isc): 18.52 A
• Module Efficiency: 21.4%
• Operating Temperature: -40°C ~ 85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 30 A
• Application Classification: Class A
• Power Tolerance: 0 ~ 10 W

Electrical Data Under Nominal Module Operating Temperature

• Nominal Max. Power (Pmax): 454 W
• Opt. Operating Voltage (Vmp): 32.9 V
• Opt. Operating Current (Imp): 13.80 A 1
• Open Circuit Voltage (Voc): 39.2 V
• Short Circuit Current (Isc): 14.93 A

Mechanical Data

• Cell Type: Mono-crystalline
• Cell Arrangement 120 [2 X (10 X 6) ]
• Dimensions: 2172ˣ 1303ˣ 35mm (85.5ˣ 51.3ˣ 1.38 in)
• Weight: 31 kg (68.3.0 lbs)
• Front Cover: 3.2 mm tempered glass with antireflective coating
• Frame: Anodized aluminium alloy,
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Connector: T6 or T4 Series or MC4-EV02
• Cable Length: Portrait: 460mm (18.1 in) ( ) / 340
• mm (13.4 in) (-) or customized length*
• Per Pallet: 31 pieces
• Per Container (40' HQ): 527 pieces

Temperature Characteristics

• Temperature Coefficient (Pmax) -0.34 % / °C
• Temperature Coefficient (Voc) -0.26 % / °C
• Temperature Coefficient (Isc) 0.05 % / °C
• C Nominal Module Operating Temperature 41 ± 3°C

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
